Touch Screen Digital Control
User-friendly touch screen interface for real-time monitoring and adjustments.
Precise temperature and pressure regulation for consistent test conditions.
Dual-Cell Design for Efficient Testing
The touch screen dual cell HTHP consistometer allows simultaneous testing of two samples, improving lab efficiency.
The touch screen double cylinders consistometer ensures uniform heating and pressure distribution across both cells.
High-Temperature & High-Pressure (HTHP) Capability
Simulates extreme wellbore conditions for accurate cement slurry performance evaluation.
Robust construction ensures durability under demanding test environments.
Automated Consistency & Thickening Time Measurement
The touch screen double cell cement slurry consistency time measuring instrument provides reliable data on slurry gelation and setting behavior.
Real-time data logging and export for detailed analysis.
Enhanced Safety & Compliance
Built-in safety mechanisms to prevent overpressure and overheating.
Complies with API and ISO standards for cement testing.
| Feature | Touch Screen Single Cell Consistometer | Traditional Consistometer |
|---|---|---|
| Control Interface | Digital touch screen | Manual knobs/dials |
| Data Recording | Automated, digital logs | Manual chart recording |
| Pressure/Temperature Accuracy | PID-controlled, high precision | Less stable, manual adjustments |
| Safety Features | Advanced sensors & auto-shutdown | Basic safety mechanisms |
Maximum Temperature | 250 ℃ / 482 ℉ |
Maximum Pressure | 200 MPa / 29,000 psi |
Thickening Time Range | 0 to 100 Bearden Units (Bc) |
Consistency Division | 1 Bc |
Slurry Cup Rotation Speed | 150 r/min±15 r/min |
Heater Power | 4,000 watts each |
Pressure Medium | Special Oil for Consistometer |
Ambient Temperature | 10 to 50 ℃ / 50 to 122 ℉ |
Compliance | API Spec.10 / GB10238-2015 |
Power | 110 or 220 VAC 50 Hz 5.5×2 kVA |
Compressed Air | 0.3 to 0.7 MPa / 43.5 to 102 psi |
Cooling Water | 0.2 to 0.6 MPa / 29 to 87 psi |
Dimensions | 1,300×740×1,750mm3 / 50×30×70 in3 |
Weight | 950kg / 2,100 lb |
Oilfield cement slurry thickening time analysis
Cement hydration studies under HTHP conditions
Quality control in cementing operations

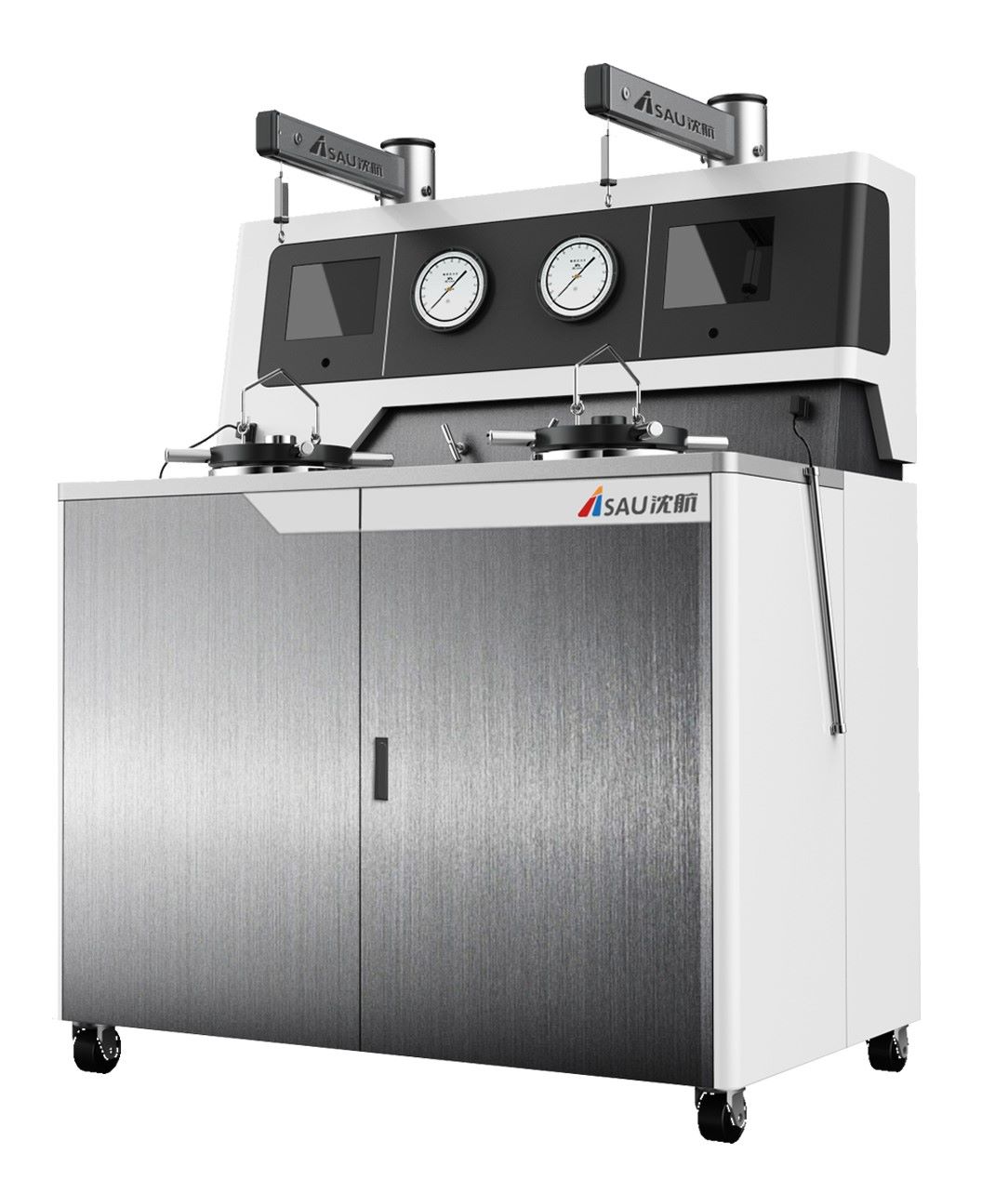

The Touch Screen Dual Cell Pressurized Consistometer revolutionizes cement testing by combining digital precision, dual-cell efficiency, and robust HTHP performance, ensuring reliable results for critical oilfield applications.
