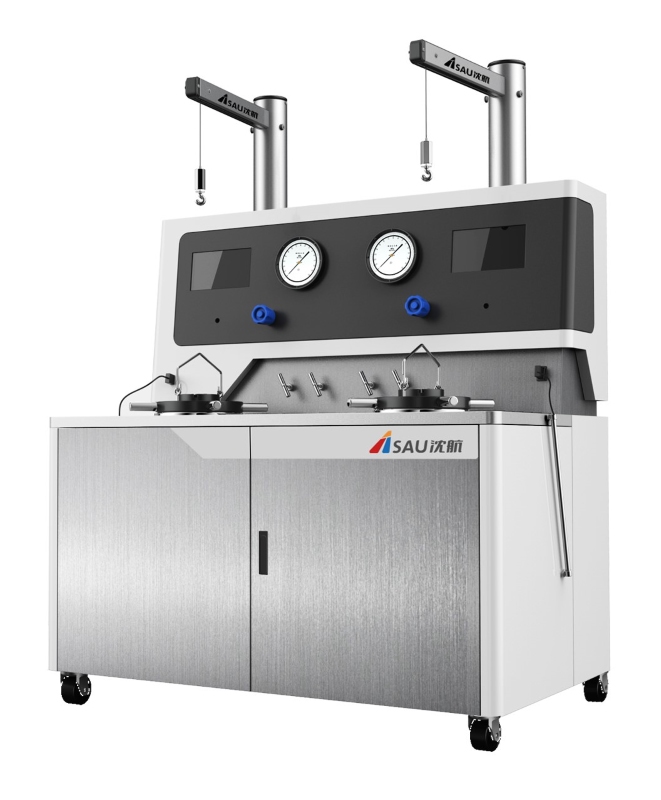

Next-Generation Dual Testing with Intelligent Control
Engineered for high-throughput cement research, oilfield QA/QC, and advanced material studies, this system enables simultaneous comparative testing while providing full digital control and monitoring of both cells.
✔ Dual Independent Cells – Conduct two different tests simultaneously or run identical conditions for verification, doubling lab productivity
✔ Intuitive Touchscreen Control – Easily program and monitor both cells independently through a user-friendly digital interface
✔ Real-Time Parallel Monitoring – View and compare temperature, pressure, and curing data for both cells on a single display
✔ Automated Test Protocols – Store and recall frequently used programs for consistent, repeatable testing
✔ Enhanced Data Management – Export test records via USB for analysis, reporting, and compliance documentation
✔ Smart Safety Features – Independent safety systems for each cell with visual/audible alarms and auto-shutdown
Test two samples in the time of one – perfect for high-volume labs
Eliminate waiting time between different test conditions
Direct comparison of cement formulations under identical ambient conditions
Reduce batch-to-batch variability in test results
Single operator can manage multiple tests simultaneously
Shared heating system reduces energy consumption vs two single chambers
Power Source | 200-240 VAC 50/60 Hz |
Heater Power | 9,000 watts |
Maximum Temperature | 374 ℃ / 705 °F |
Temperature Accuracy | ±1 ℃ / ±1.8 ℉ |
Maximum Pressure | 40 MPa / 5,800 psi |
Pressure Accuracy | ±1 MPa / ±145 psi |
Single Chamber Volume | 5.9L |
Chamber Material | Special stainless alloy, whole chamber is processed by one billet, no weld |
Number of Cubes | 16 (single 2-inch cube) |
Ambient Temperature | 10 to 40 ℃ / 50 to 104 °F |
Compressed Air | 0.3 to 0.7 MPa / 44 to 100 psi |
Cooling Water | 0.2 to 0.6 MPa / 30 to 90 psi |
Compliance | API Specification 10 |
Dimensions | 1350 x840 x1,750 mm3 / 53 x33 x69 in3 |
Weight | 900 kg / 1,984 lb |
Comparative cement studies – Evaluate multiple slurry designs side-by-side
Method development – Optimize curing parameters efficiently
Quality control – Run production samples against standards concurrently
Advanced material research – Study cement, geopolymers, and composites under extreme conditions
Experience the Future of Cement Testing!
The Touch Screen Dual Cell HTHP Cement Curing Chamber combines the productivity of dual testing with the precision of digital control - the perfect solution for modern laboratories demanding efficiency, accuracy, and smart features.
Keywords: Touch Screen Dual Cell HTHP Cement Curing Chamber, Digital Dual Pressure Curing System, Automated Dual Chamber Cement Tester, 374°C 40MPa Touch Control Chamber, High-Throughput Cement Lab Equipment.
Contact us today to double your testing capacity with intelligent control!
